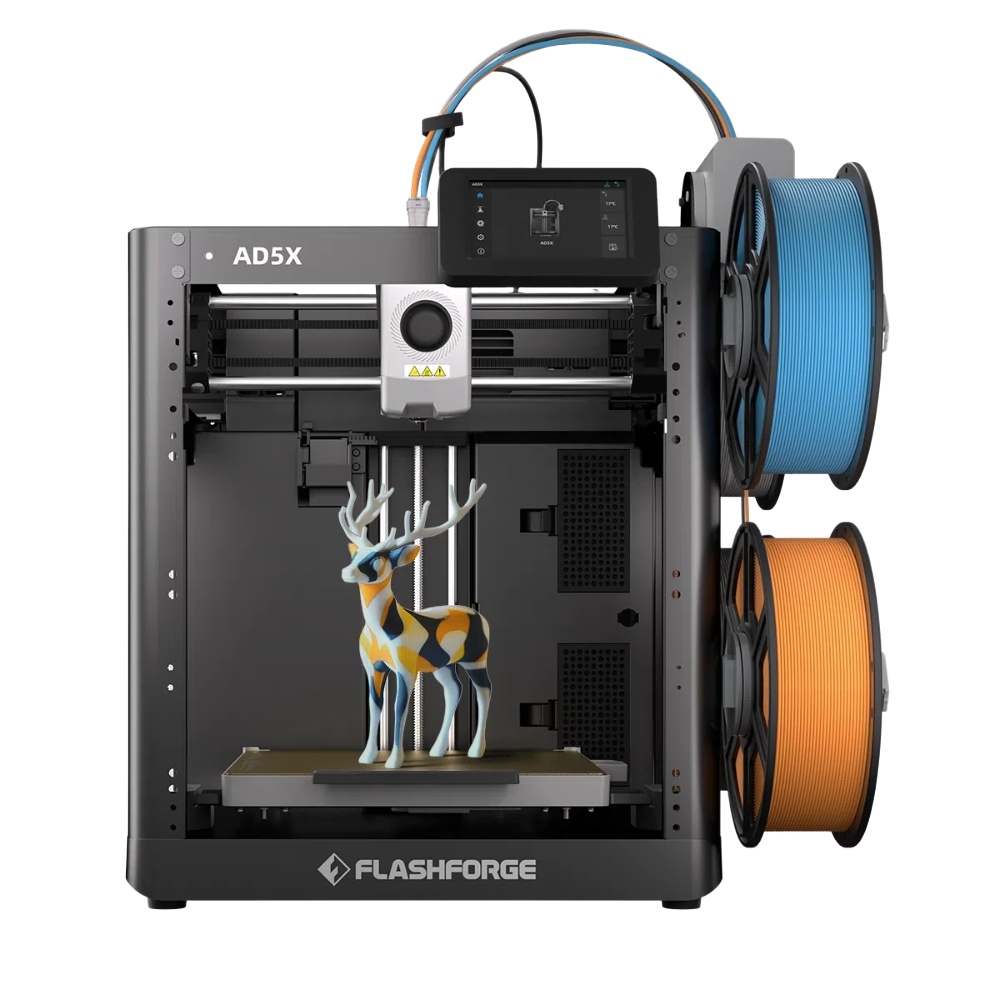

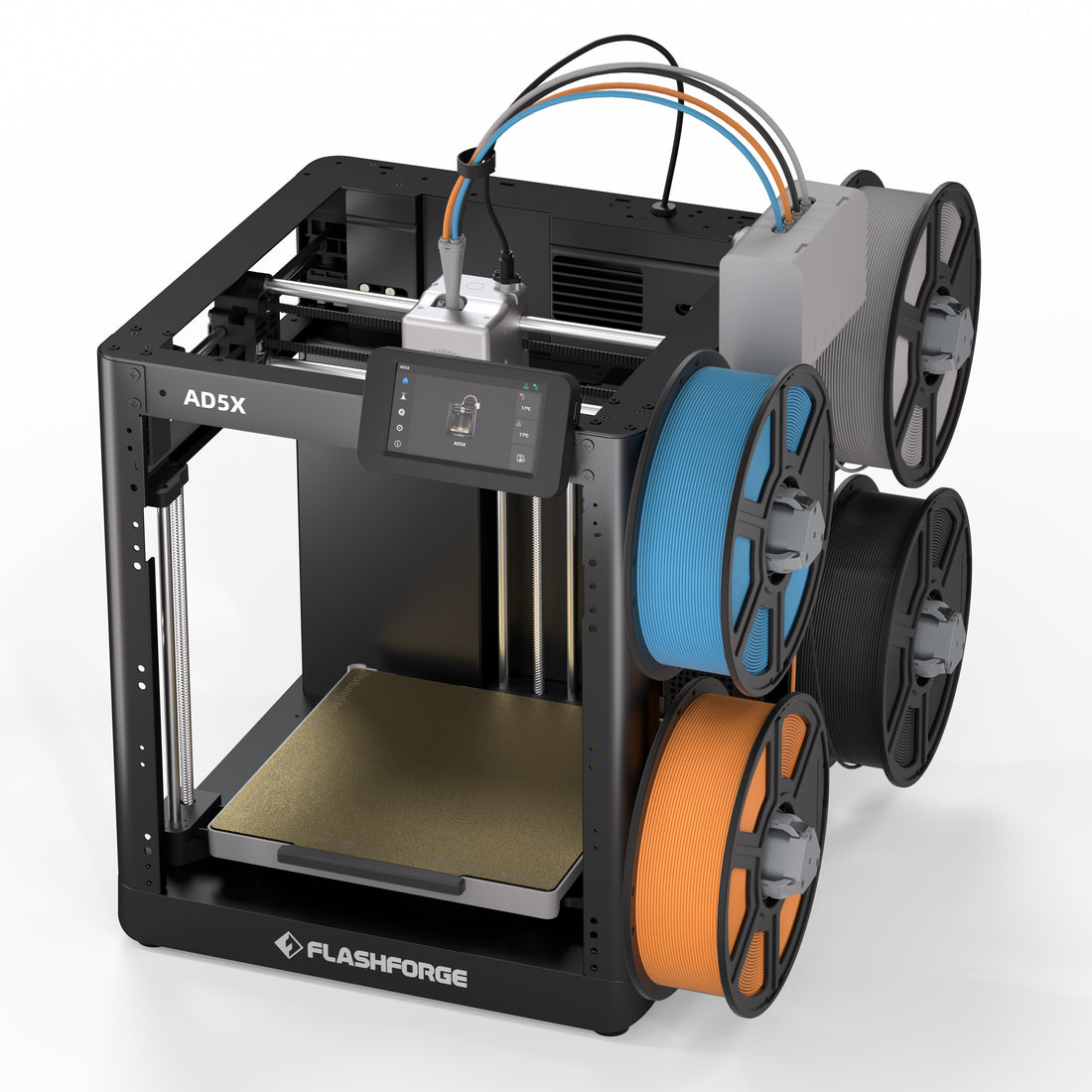

The Flashforge Adventurer 5X is a high-speed, multi-colour 3d printing, semi-enclosed FDM 3D printer designed for users who want to print at exceptional speeds with more versatility. It combines the core performance of the Adventurer 5M (CoreXY structure, automatic levelling, and quick-detach nozzles) with a protective, semi-enclosed chamber. This makes it a perfect balance of speed, accessibility, and improved filament handling, allowing for better printing with materials that require a more stable temperature environment.
Other Relevant Information
Semi-Enclosed Design: The Adventurer 5X features a protective enclosure on the sides and top, which helps to maintain a more stable internal temperature than an open-frame printer. This improves print quality with temperature-sensitive materials like ABS and ASA.
CoreXY High-Speed Structure: The Adventurer 5X utilises a CoreXY motion system, which provides exceptional stability and precision at high speeds.
Quick-Detach Nozzle: The nozzle can be replaced in as little as 3 seconds without the need for tools, simplifying maintenance and enabling quick changes between different nozzle diameters.
Filament Sensor & Power-Loss Recovery: The printer features a filament run-out sensor that pauses the print when filament is exhausted and a power-loss recovery function that allows it to resume printing seamlessly after a power interruption.
Flashforge Ecosystem: The Adventurer 5X integrates perfectly with Flashforge's ecosystem, including the user-friendly Orca-Flashforge slicer and the FlashMaker mobile app for remote monitoring and control.
Product Description
Specifications
Machine Name |
Adventurer 5X |
Printing Technology |
Fused Deposition Modelling (FDM) |
Extruder |
Direct Drive |
Maximum Extruder Temperature |
280 °C |
Maximum Bed Temperature |
110 °C |
Maximum Travel Speed |
600 mm/s |
Maximum Printing Speed |
300 mm/s |
Maximum Acceleration |
20000 mm/s² |
Build Volume (L × W × H) |
220 x 220 x 220 mm |
Nozzle Diameter |
0.4 mm (Standard) |
Compatible Nozzle Diameters |
0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm (Sold separately) |
Filament Compatibility |
PLA, PETG, PLA-CF, PETG-CF, TPU (95A) |
Leveling System |
Fully Automatic Levelling |
Connectivity |
Wi-Fi, Ethernet, USB |
User Interface |
4.3-inch Colour Touchscreen |
Slicing Software |
Orca-Flashforge (Recommended), FlashPrint, Cura, PrusaSlicer |
Product Weight (Net) |
Approximately 16.5 kg |
Product Dimensions (L × W × H) |
380 x 398 x 455 mm |
Product Maintenance
Regular maintenance is key to the long-term performance of your Adventurer 5X.
Nozzle & Build Plate Cleaning: Clean the nozzle with a brass brush while warm and wipe the flexible PEI build plate with isopropyl alcohol (IPA) or warm water and soap after every few prints to ensure optimal bed adhesion.
Linear Rod & Screw Lubrication: Every 1,000 printing hours, clean the X, Y, and Z-axis linear rods and the Z-axis lead screw. Apply a thin coat of silicone lubricant to the rods and a suitable grease to the lead screw to ensure smooth, precise movement.
Firmware Updates: Periodically check for and install the latest firmware to get performance improvements, bug fixes, and new features.
Internal Chamber Cleaning: Use a soft brush or vacuum to remove any filament debris from inside the printer's chamber to prevent interference with moving parts.
Shipping Details
Product Weight:
20.5 kg
Product Volume:
46cm X 39.8cm X 53cm
